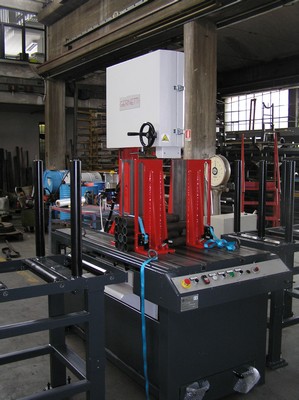

BAND SAW - V 6060
The band-sawing machines of the "Vertical Line" represent the most versatile solution for a band blade cutting.
It's very easy to operate and thanks to a wide table with T slots, it allows different kind of workings even with very big material, in addition to a big cutting capacity, and it can be used for different fields.
- Hydraulic clamping of the material to be cut
- Big cutting capacity
- Cutting capacity at angle till 60° from vertical axis of the blade
- Frame rotation through a geared motor
- Extremely easy to operate
- Cutting speed variable through an inverter
- Frame structure in welded heavy sheet
- The clamping vise can be positioned on the right or left side of the blade
- Wide table with T slots
- Frame feeding and return through an hydraulic piston
Horizontal capacity |
mm | 600 |
Vertical capacity at 90° |
mm | 600 |
Vertical capacity at 45 ° left/right |
mm | 340 |
Vertical capacity at 60 ° left |
mm | 340 |
Blade dimensions (lenght x width x thickness) |
mm | 5110x27(34)x0,9(1,1) |
whells diameter |
mm | 510 |
Table height |
m/min | 1020 |
T slot |
n° | 4 |
Working surface |
mm | 850x710 |
Maximum vise opening |
kW | 610 |
Vise height & width |
mm | 175x322 |
Main drive |
kW | 3 |
Hydraulic unit motor |
kW | 1,5 |
Coolant pump motor |
kW | 0,15 |
Reservoir capacity |
l | 94 |
Blade speed |
m/min | 20-100 |
Feed force |
mm/min | 20-100 |
Overall dimensions |
mm | 2400x2440x2470h |
Net weight |
mm | 1600 |
