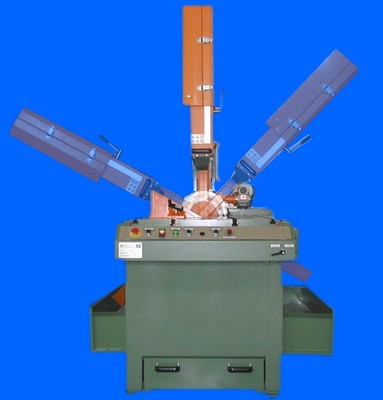

BAND SAW - V 5060
The band-sawing machines of the "Vertical Line" represent the most versatile solution for a band blade cutting.
It's very easy to operate and thanks to a wide table with T slots, it allows different kind of workings even with very big material, in addition to a big cutting capacity, and it can be used for different fields.
- Big cutting capacity
- Cutting capacity at angle till 60° from vertical axis of the blade
- Frame rotation through a geared motor
- Extremely easy to operate
- Cutting speed variable through an inverter
- Frame structure in welded heavy sheet
- The clamping vise can be positioned on the right or left side of the blade
- Wide table with T slots
Horizontal capacity |
mm | 510 |
Vertical capacity at 90° |
mm | 610 |
Vertical capacity at 45 ° left/right |
mm | 380 |
Vertical capacity at 60 ° left |
mm | 230 |
Blade dimensions (lenght x width x thickness) |
mm | 4745x27(34)x0,9(1,1) |
whells diameter |
mm | 510 |
Table height |
m/min | 970 |
T slot |
n° | 4 |
Working surface |
mm | 850x710 |
Maximum vise opening |
kW | 550 |
Vise height & width |
mm | 175x322 |
Main drive |
kW | 3 |
Hydraulic unit motor |
kW | - |
Coolant pump motor |
kW | 0,15 |
Reservoir capacity |
l | 90 |
Blade speed |
m/min | 12-150 |
Feed force |
Kgf | 0-60 |
Overall dimensions |
mm | 2250x2200x2340h |
Net weight |
mm | 1500 |
