saw - sawing system

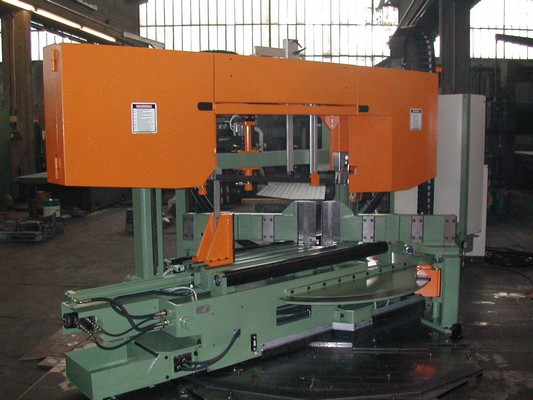

BAND SAW - SHN 50/24 MC



The twin columns band-sawing machines of the "Semiautomatic Line" have been studied and produced taking into consideration the problems and the needs of medium and heavy structural steel work. They represent the maximum expression of technology applied to the cut of both medium and large I-beams and of profiles and pipes of little, medium and big dimensions.

Strong, extremely versatile, easy to operate and very trust-worthy, they obtain very important results, for what concerns the cutting speed, the cutting precision and the blade life.



- Thick heavy metallic steel work, welded and normalized

- Frame sliding on ball recirculation guide-ways

- Cutting speed continuously variable through an inverter

- Proportional valve for the control and the variation of the down feed of the frame with relation to the real effort of the blade

- Hydraulic blade tensioning

- Motorized chips conveyor

- Motorized rotation: 90°/+ - 45°/+60°
